All-terrain medium truck Praga V3S Flatbad

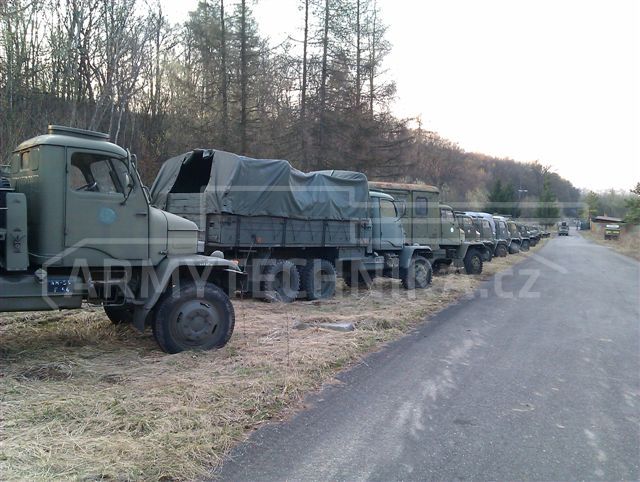

Three vehicles, originally owned by the AFCR - Stará Boleslav, are in stock. In the centre in Kotojedy u Kroměříže there are more than 20 vehicles.
The PV3S flatbed truck is a Czechoslovak medium 3-axle 6x6 truck. It was designed for transporting personnel and materials both on and off-road and for towing trailers. The PV3S flatbed truck version is a flagship and a basic chassis version, on which an immense number of different bodies were mounted in the course of time.
The vehicle’s development was based on needs that originated from the Second World War, which is why it has an excellent off-road capability to the detriment of maximum speed, a fact that was considered an advantage. Its production began in 1953 and took place until the 1980s, and it served in in the army for an unbelievable 30 years.
Parameters
| Parameter name | Value |
|---|---|
| General Information | Basic flatbad version |
| Max. speed | 60 Km / h |
| Length | 6,91 m |
| Width | 2,32 m |
| Height up to the driver´s cabine roof when unladen | 2,55 m |
| Height up to the body roof (tarpaulin) when unladen | 2,97 m |
| Axles wheelbase | 3,58 m (between the 1st and the 2nd axle) + 1,12 m (between the 2nd and the 3rd axle) |
| Front axles wheelbase | 1,87 m |
| Rear axles wheelbase | 1,755 m |
| Clearance | 0,4 m |
| Weight | 5,55 t |
| Maximum total weight when laden | Road 11 t, terrain 9 t |
| Wading depth | 0,8 m |
| Operation range | 600 Km |
| Vertical obstacle | 0,45 m |
| Trench crossing | 0,7 m |
| Turning radius | 10,5m |
| Loading area length | 4,01 mm |
| Loading area width | 2,1 mm |
| Sideboards height | 0,5 m |
| Sideboards extensions height | 0,371 m |
| Loading area clearance | 1,710 mm |
| Loading area height above ground when unladen | 1,25 m |
| Trailer suspension point height | 1 m |
| Additional Information | |
| Crew | 2 members in the driver´s cabine + 22 members |
| Drive Unit | |
| Engine | T 912 |
| Specification | Ignition, 4-stroke engine with direct injection and air cooling |
| Number of cylinders | 6 inline |
| Fuel | Motor diesel |
| Engine volume | 7,412 cm3 |
| Maximum performance | 70 kW at 2,100 rev / min |
| Maximum torque | 353 N.m at 1,400 rev / min |
| Consumption summer / winter | 32 / 37 l / 100 Km |
